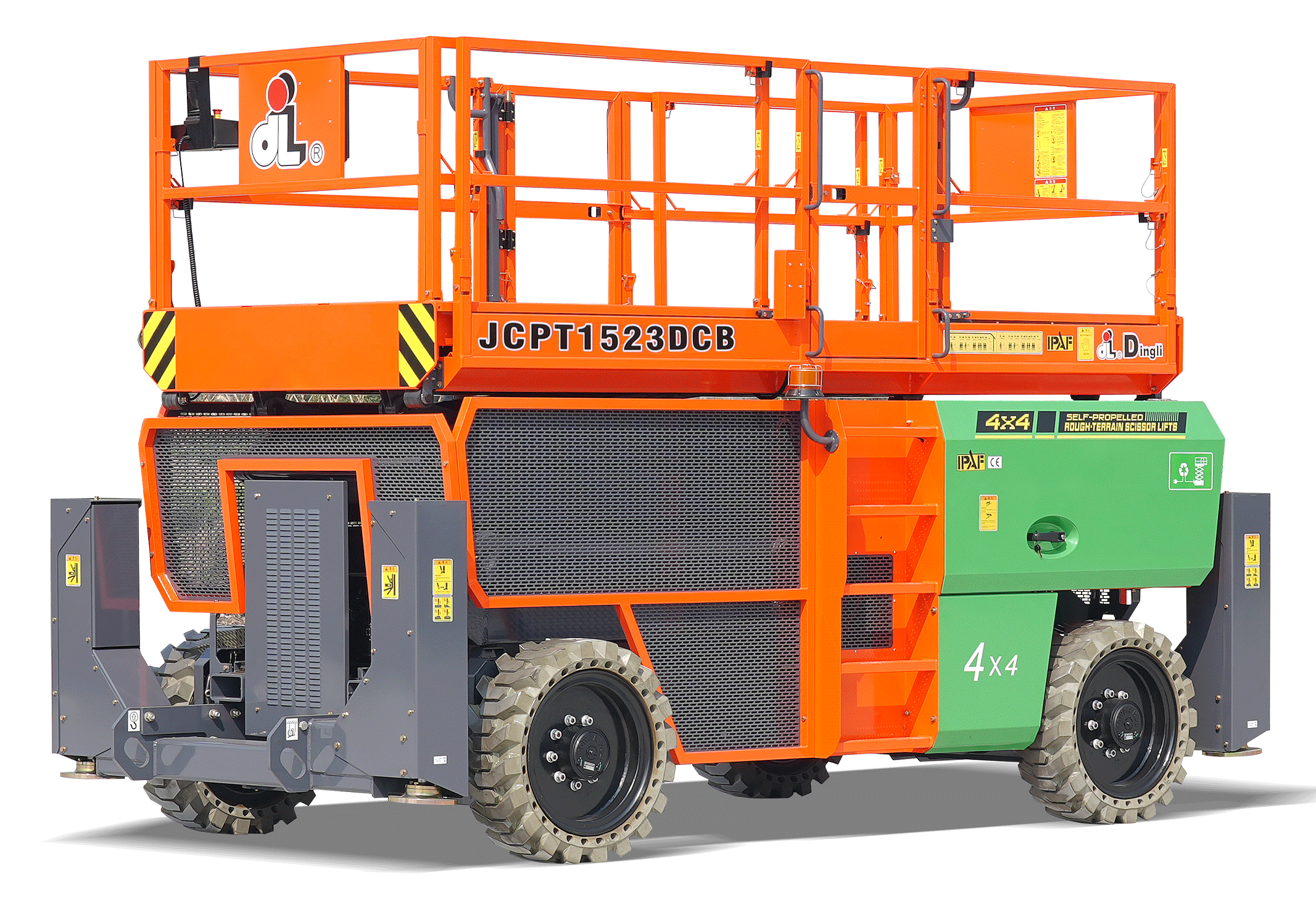

JCPT1523DCB
JCPT1523DCB
JCPT1523DCB
Large Scissor

● Strong off-road ability

● Large extension platform, wide working range

● Automatic hydraulic leveling outriggers, good stability

● Folding guardrails, easy transportation


Previous Model | Next Model
Find a Dealer
Leave a Message
  • Product Parameter
  • Support
  • Download
  • Dimension
    Max. Working Height
    15.00m / 49ft 3in
    Max. Platform Height
    13.00m / 42ft 8in
    Overall Length(Without Outriggers)
    3.98m / 13ft 1in
    Overall Length(With Outriggers)
    4.88m / 16ft
    Overall Width
    2.29m / 7ft 6in
    Overall Height(Rails Up)
    2.98m / 9ft 9in
    Overall Height(Rails Down)
    2.28m / 7ft 6in
    Platform Size(Length×Width)
    3.98×1.83m / 13ft 1in×6ft
    Platform Extension Size
    1.43m/1.16m / 4ft 8in/3ft 10in
    Ground Clearance(Stowed/Raised)
    0.30m / 1ft
    Wheelbase
    2.86m / 9ft 5in
    Turning Radius(Inside/Outside)
    2.35m/5.20m / 7ft 8in/18ft
    Tyres
    33×12-20
  • Performance
    Safe Working Load
    680kg / 1499lb
    S.W.L On Extension
    227kg / 500lb
    Max. Occupants(Indoor/Outdoor)
    7/7
    Gradeability
    0.4
    Travel Speed(Stowed)
    ≯6.0km/h / ≯3.73mph
    Travel Speed(Raised)
    ≯1.0km/h / ≯0.62mph
    Travel Speed(Raised)(<11m/≥11m)
    /
    Max. Working Slope(X/Y)
    2°/3°
    Max. Working Slope(X/Y)(<11m/≥11m)
    /
    Up/Down Speed
    70/55sec
  • Weight
    Overall Weight(Without Outriggers)
    7300kg / 16094lb
    Overall Weight(With Outriggers)
    8200kg / 18078lb
    Overall Weight(Lead-acid Battery)
    /
    Overall Weight(Lithium Battery)
    /
  • Power
    Diesel Engine
    /
    Range Extended Engine
    /
    Diesel Tank
    /
    Hydraulic Tank
    130L / 34gal
    Lead-acid Battery
    /
    Lead-Acid Maintenance-Free Battery
    48V/450Ah
    Lithium Battery
    /
    Charger
    48V/60A
    Driving Motor
    4×32VAC/3.3kW
    Lifting Motor
    2×48VDC/8.0kW
    Motor
    /
