ZDYT3-3.7S
ZDYT3-3.7S
ZDYT3-3.7S

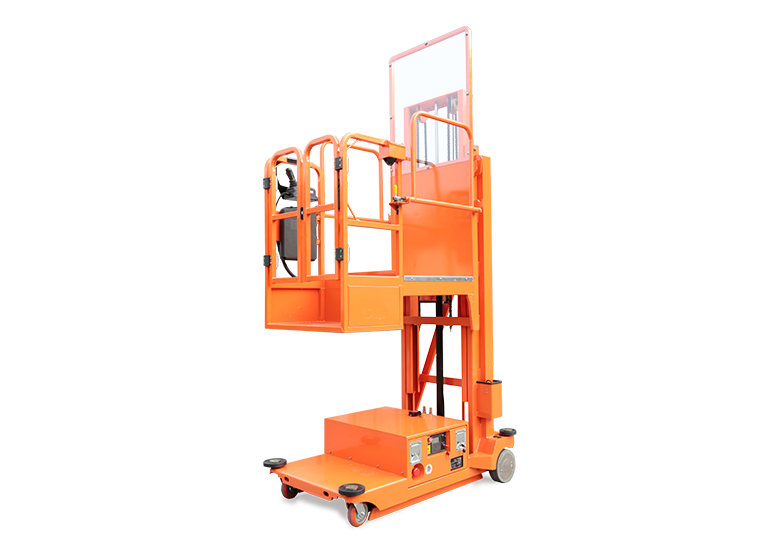

Self-propelled Aerial Stock Picker

● Suitable for warehouse, supermarket and other narrow space environment

● Fault diagnosis, oil pipe explosion-proof system

● Automatic pit protection

● Full height driving



Previous Model | Next Model
Find a Dealer
Leave a Message
  • Product Parameter
  • Support
  • Download
  • Dimension
    Max. Working Height
    5.70m / 18ft 8in
    Max. Platform Height
    3.70m / 12ft 2in
    Overall Length(Stowed)
    1.56m / 5ft 1in
    Overall Length(Tilted Back)
    /
    Overall Width(Stowed)
    1.06m / 3ft 6in
    Overall Width
    /
    Overall Height(Stowed)
    2.42m / 7ft 11in
    Overall Height(Tilted Back)
    /
    Outrigger Footprint(Length /Width )
    /
    Platform Size(Length ×Width )
    1.18m×0.80m / 3ft 10in×2ft 7in
    Ground Clearance
    0.08m / 3in
    Wheelbase
    1.27m / 4ft 2in
    Turning Radius
    0
    Tyres(Front)
    6in
    Tyres(Back)
    Φ230×80mm
  • Performance
    Safe Working Load
    300kg / 661lb
    Max. Occupants(Indoor/Outdoor)
    1/0
    Gradeability
    0.25
    Max. Working Slope(X/Y)
    1.5°/2°
    Travel Speed(Stowed)
    ≯4.0km/h/ ≯2.50mph
    Travel Speed(Raised)
    ≯0.8km/h/ ≯0.49mph
    Up/Down Speed
    22/19sec
  • Weight
    Overall Weight
    720kg / 1587lb
    Overall Weight - AC
    /
    Overall Weight - DC
    /
  • Power
    Lead-Acid Maintenance-Free Battery
    24V/105Ah
    Charger
    24V/30A
    Lifting Motor - AC
    /
    Lifting Motor - DC
    /
    Driving Motor
    24V/0.4kW
    Lifting Motor
    24V/2.2kW
