DYT2-4.5S
DYT2-4.5S
DYT2-4.5S

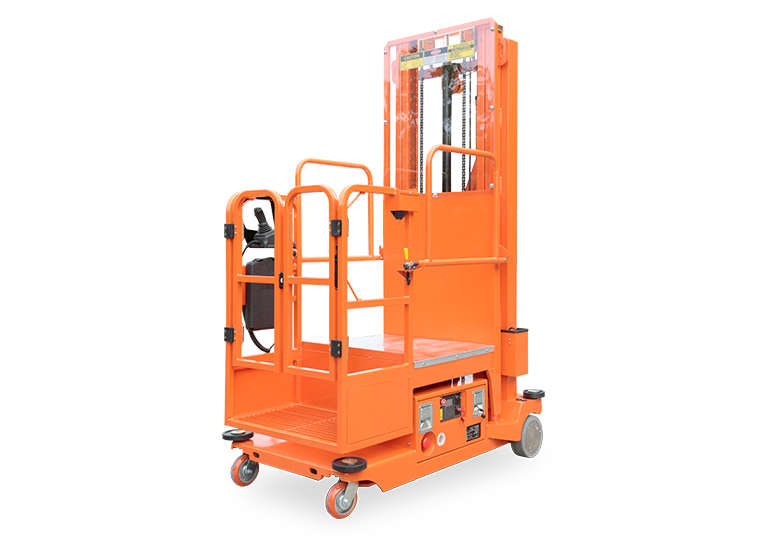

Mobile Aerial Stock Picker

● Suitable for warehouse, supermarket and other narrow space environment

● Fault diagnosis, tilt protection, oil tank explosion proof system

● Emergency descent system

● Standard working platform



Previous Model | Next Model
Find a Dealer
Leave a Message
  • Product Parameter
  • Support
  • Download
  • Dimension
    Max. Working Height
    6.50m / 21ft 4in
    Max. Platform Height
    4.50m / 14ft 9in
    Overall Length(Stowed)
    1.42m / 4ft 8in
    Overall Length(Tilted Back)
    /
    Overall Width(Stowed)
    1.08m / 3ft 6in
    Overall Width
    /
    Overall Height(Stowed)
    2.28m / 7ft 6in
    Overall Height(Tilted Back)
    /
    Outrigger Footprint(Length /Width )
    /
    Platform Size(Length ×Width )
    1.11m×0.80m / 3ft 8in×2ft 7in
    Ground Clearance
    0.08m / 3in
    Wheelbase
    0.95m / 3ft
    Turning Radius
    /
    Tyres(Front)
    6in
    Tyres(Back)
    Φ152×55mm
  • Performance
    Safe Working Load
    300kg / 661lb
    Max. Occupants(Indoor/Outdoor)
    1/0
    Gradeability
    Max. Working Slope(X/Y)
    1°/1°
    Travel Speed(Stowed)
    /
    Travel Speed(Raised)
    /
    Up/Down Speed
    30/17sec
  • Weight
    Overall Weight
    700kg / 1543lb
    Overall Weight - AC
    /
    Overall Weight - DC
    /
  • Power
    Lead-Acid Maintenance-Free Battery
    12V/85Ah
    Charger
    12V/30A
    Lifting Motor - AC
    /
    Lifting Motor - DC
    /
    Driving Motor
    /
    Lifting Motor
    12V/1.6kW
