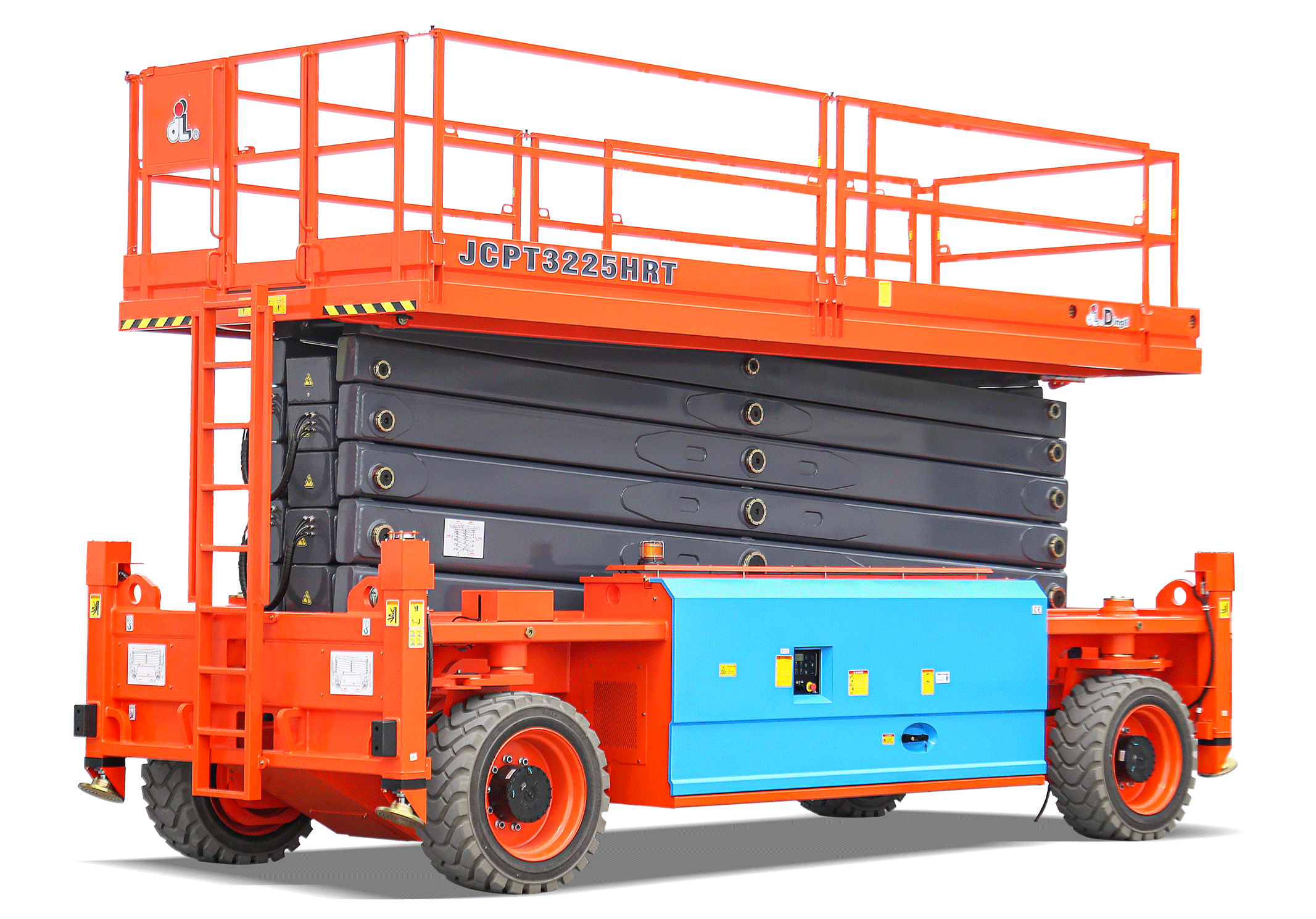

JCPT3225HRT
JCPT3225HRT
JCPT3225HRT
Large Scissor
Previous Model | Next Model
Find a Dealer
Leave a Message
  • Product Parameter
  • Support
  • Download
  • Dimension
    Max. Working Height
    32.00m / 105ft
    Max. Platform Height
    30.00m / 98ft 5in
    Overall Length(Without Outriggers)
    /
    Overall Length(With Outriggers)
    6.73m / 22ft 1in
    Overall Width
    2.55m / 8ft 4in
    Overall Height(Rails Up)
    4.13m / 13ft 7in
    Overall Height(Rails Down)
    3.19m / 10ft 6in
    Platform Size(Length×Width)
    6.20m×2.45m / 20ft 4in×8ft
    Platform Extension Size
    2.10m / 6ft 11in
    Ground Clearance(Stowed/Raised)
    0.20m / 8in
    Wheelbase
    4.86m / 15ft 11in
    Turning Radius(Inside/Outside)
    3.80m/6.30m / 12ft 6in/20ft 8in
    Tyres
    15-625
  • Performance
    Safe Working Load
    1000kg / 2204lb
    S.W.L On Extension
    1000kg / 2204lb
    Max. Occupants(Indoor/Outdoor)
    4/4
    Gradeability
    0.3
    Travel Speed(Stowed)
    ≯3.5km/h / ≯2.17mph
    Travel Speed(Raised)
    ≯0.3km/h / ≯0.19mph
    Travel Speed(Raised)(<11m/≥11m)
    /
    Max. Working Slope(X/Y)
    2°/3°
    Max. Working Slope(X/Y)(<11m/≥11m)
    Up/Down Speed
    150/120sec
  • Weight
    Overall Weight(Without Outriggers)
    /
    Overall Weight(With Outriggers)
    24610kg / 54256lb
    Overall Weight(Lead-acid Battery)
    /
    Overall Weight(Lithium Battery)
    /
  • Power
    Diesel Engine
    /
    Range Extended Engine
    Kubota Z482/9.8kW
    Diesel Tank
    130L / 34gal
    Hydraulic Tank
    260L / 69gal
    Lead-acid Battery
    /
    Lead-Acid Maintenance-Free Battery
    /
    Lithium Battery
    80V/420Ah
    Charger
    80V/80A
    Driving Motor
    4×56VAC/6kW
    Lifting Motor
    53VAC/28kW
    Motor
    /
