BM32M
BM32M
BM32M

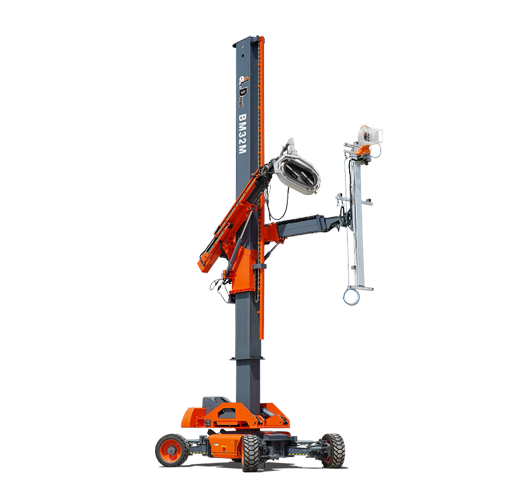

Dock-elephant Spraying Robot

Dingli has pioneered the world’s first dockyard descaling and painting robot, based on boom and scissor aerial work platforms. This robot can  handle rust removal and painting tasks on ship hulls and bottoms. Manufactured entirely by Dingli’s “Future Factory,” it offers uniform spraying,  reduced labor, a tenfold increase in efficiency, zero safety incidents, and is environmentally friendly, and is now in mass service at Zhoushan  Wanbang Shipyard. The robot distinguishes itself from traditional ship repair and construction technologies by establishing a modernized system  of mechanized, intelligent, and eco-friendly applications. Dingli provides comprehensive green intelligent equipment solutions for shipyards  worldwide.

  • Product Parameter
  • Support
  • Download
  • Aerial work platform operation
    Max. working height
    32.40m - 106ft 4in
    Max. platform height
    30.40m - 99ft 9in
    Max. working scope
    10.15m - 33ft 4in
    Platform dimensions(L×W)
    1.24×0.74m - 4ft 1in×2ft 5in
    Working state overall dimensions(L×W×H)
    -Retracted
    6.29×4.00×13.40m20ft 8in×13ft 1in×44ft
    - Extended
    12.90×4.00×24.16m42ft 4in×13ft 1in×79ft 3in
    Max. load capacity
    Max. occupants
    1
    Time required for amplitude of the horizontal boom
    454kg1001lb (1person+equipment)
    - Fully extended(Up/Down)
    64s/52s
    - Fully retracted(Up/Down)
    45s/43s
    Horizontal boom full movement time (Extension/Retraction)
    60s/52s
    Time required for mast(Lift/Descend)
    90s/90s
    Time required for spray painting rack(Lift/Descend)
    70s/70s
  • Rust removal operation
    Max. working height
    22.20m - 72ft 10in
    Max. working scope
    10.10m - 33ft 2in
    Working state overall dimensions(L×W×H)
    -Retracted
    6.23×4.00×13.40m20ft 5in×13ft 1in×44ft
    -Extended
    12.90×4.00×24.16m42ft 4in×13ft 1in×79ft 3in
    Max. load capacity
    Max. occupants
    1
    Time required for amplitude of the horizontal boom
    454kg1001lb(1person+equipment)
    - Fully extended(Up/Down)
    64s/52s
    - Fully retracted(Up/Down)
    45s/43s
    Horizontal boom full movement time (Extension/Retraction)
    60s/52s
    Time required for mast(Lift/Descend)
    90s/90s
    Time required for spray painting rack(Lift/Descend)
    70s/70s
  • Spray painting operation
    Max. working height
    27.00m - 88ft 7in
    Max. working scope
    10.87m - 35ft 8in
    Working state overall dimensions(L×W×H)
    - Retracted
    6.98×4.00×13.40m22ft 11in×13ft 1in×44ft
    - Extended
    13.59×4.00×26.40m44ft 7in×13ft 1in×86ft 7in
    Applicable worksite
    Ship side spraying operation
    Spray mode
    Semi-automatic
    Visual positioning
    Point laser positioning guide to ensure that the spray gun is always perpendicular to the surface to be sprayed, and maintain a certain distance
    Control method
    Industrial remote control operation
    Spray area(Single Application)
    3800×1260mm12ft 6in×4ft 2in
    Working height
    1~27m - 3ft 3in~88ft 7in
    Spray painting robot running speed
    0.1~1m/s - 4in~3ft 3in/s
    Spray painting robot(L×W×H)
    1600×1500×5200mm5ft 3in×4ft 11in×17ft 1in
    Horizontal boom full movement time (Extension/Retraction)
    60s/52s
    Time required for mast(Lift/Descend)
    90s/90s
    Time required for spray painting rack(Lift/Descend)
    70s/70s
  • Standardized Parameters
    Platform rotation
    ’-90~90
    Main boom amplitude angle
    ‘-30~55°
    Turntable rotation
    350°Discontinuity
    Dock passing doorway(W×H)
    6.00×4.50m19ft 8in×14ft 9in
    Transport size for flatbed truck(L ×W ×H )
    15.03×2.43×3.86m49ft 4in×8ft×12ft 8in
    Turntable tail swing(Axles extended/Retracted)
    0.34m/1.13m1ft 1in/3ft 8in
    Min. dock passing slope
    0.1
    Ground clearance
    0.40m - 1ft 4in
    Wheelbase(Axles extended /Retracted )
    4.28m/4.35m14ft/14ft 3in
    Max. working slope
    Tire and Wheels
    Foam filled tire and wheel445/50D710
    Min. turning radius(Inside/Outside)
    Axles extended
    2.99m/5.41m9ft 10in/17ft 9in
    Axles retracted
    8.27m/10.85m27ft 2in/35ft 7in
    Steering mode
    4×4×4
    Falling protector
    Model
    SAJ40-0.5
    Speed
    0.35m/s - 1ft 2in/s
    Brakeload
    40kN
    Travel speed(Stowed/Raised)
    6.0km/h / 1.1km/h3.73mph / 0.68mph
    Gradeability(Forward/Backward)
    40% / 10%
    Overall Weight
    23500kg - 51809lb
    Diesel engine
    Deutz TD2.9 L4/55.4kW
    Generator
    12kW/220V/50Hz
    Air compressor
    12L-600W
    Emergency power system
    12V
    Hydraulic tank
    250L - 66gal
    Diesel tank
    135L - 35gal
