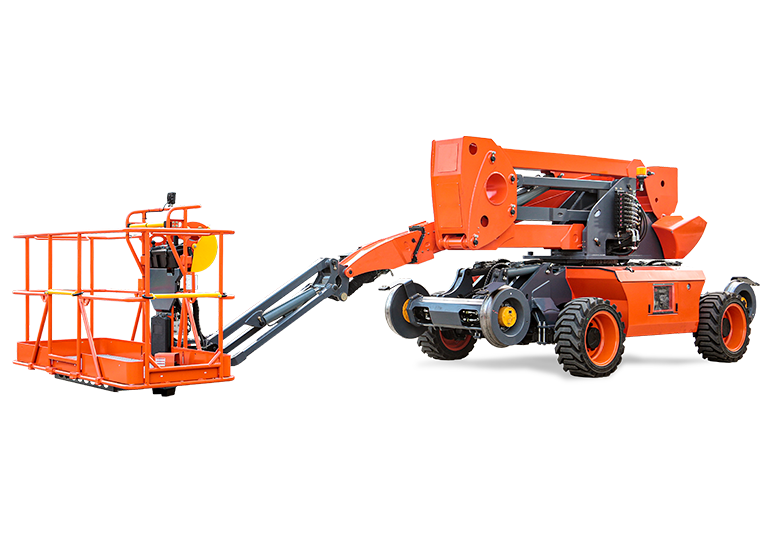

BA16RR
BA16RR
BA16RR
Rail-mounted AWP

● The maximum speed of the track 16km/h

● The whole part moves down design

● All parts are located on both sides of the chassis for convenient maintenance

● Can be transported in containers

Previous Model | Next Model
Find a Dealer
Leave a Message
  • Product Parameter
  • Support
  • Download
  • Mode
    Mode
    the road/the rail
  • Dimension
    Max. Working Height
    16.03m/16.23m
    Max. Platform Height
    14.03m/14.23m
    Up And Over Height
    6.44m/6.61m
    Max. Horizontal Reach
    8.99m
    Overall Length(Stowed)
    8.69m/8.28m
    Overall Width(Stowed)
    2.50m
    Overall Height(Stowed)
    2.46m/2.65m
    Jib Length
    1.50m
    Platform Size(Length×Width)
    2.44×0.90m
    Wheelbase
    2.40m/3.38m
    Turntable Tailswing
    0m/0.43m
    The Height Difference Between Railway Wheels And Road Wheels
    1.435m
    Ground Clearance
    0.29m/0.13m
    Tires/Railway Wheels Diameter
    315/55D20 / 0.58m
    Max. Railway Drop Height
    160mm
    Turning Radius(Inside/Outside)
    1.65/2.62m / 40m
  • Performance
    S.W.L
    400Kg/320Kg
    Max. Gradient
    30% / 0
    Max. Working Slope
    5° / 0
    Approach Angle
    22.6° / 0
    Departure Angle
    22.6° / 0
    Turret Rotation
    360° Continuous
    Platform Rotation
    180°
    Jib Movement
    130°
    Railway Axle Movement
    0~70°
  • Weight
    Overall Weight
    13120Kg
  • Power
    Engine
    Deutz D2.9 L4 36.4kW
    Hydraulic Oil Tank
    150L
    Diesel Tank
    135L
